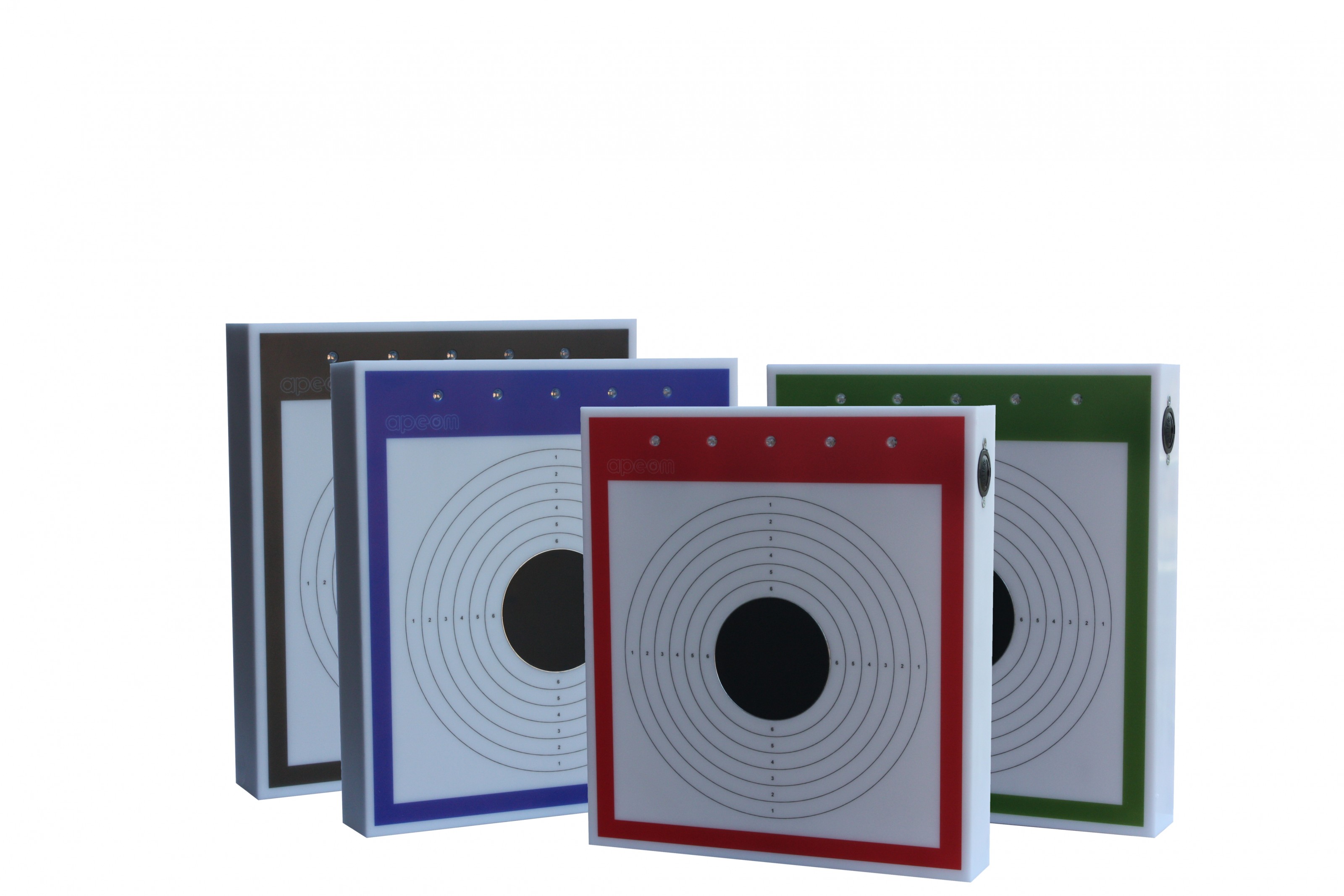

Apeom Target Hit/Miss

APEOM Target Hit / Miss for training and competition. Integrated signaling display shows Hit and Miss hits. Can be powered by batteries or power supply 9÷12 VDC.

Another possible variant of this target includes a bluetooth module. You can connect to it with any device that has bluetooth and through the app you can see the times between each shot, the total time of the shooting and the zone that has been hit.
There are 8 of these zones and they are evenly distributed all around the target.

Another possible accessory is a bracket, thanks to which the target can be screwed onto a regular tripod.

Technical parameters:

recommended shooting distance:	10 m
powered:	4.5 VDC (3xAA) or 9÷12 VDC (power supply 2.1/5.5 +inside)
dimensions:	20 x 22 x 3.5 cm
weight:	0.67 kg
operating temperature:	+5°C to +40°C
sun resistance:	70 000 Lux
evaluation of:	Hit and Miss
data output format:	UIPM Open target protocol (laser signal 15.6 ms)
first impact	yes

Definition of First Impact

User manuals:

English: ApeomTargetHit_Miss15_1.3en
German: ApeomTargetHit_Miss15_v1.2de
Russian: ApeomTargetHit_Miss15_v1.3ru
Hungarian: ApeomTargetHit_Miss15_v1.2hu

Prospektus: Target Hit/Miss
